OMP Seat Mounting Frame for Peugeot
- OMP steel seat mounting frame HD0-0784-R for Peugeot 306 from model year 94, FIA marked. Two angle rails with adjustment brackets for bucket seat.
OMP Seat Mounting Frame for Peugeot
This OMP seat mounting frame, code HD0-0784-R, is designed for the Peugeot 306 from model year 94 onwards. It provides a ready base for fitting a bucket seat in a sport-prepared car using dedicated brackets, without requiring custom floor modification.

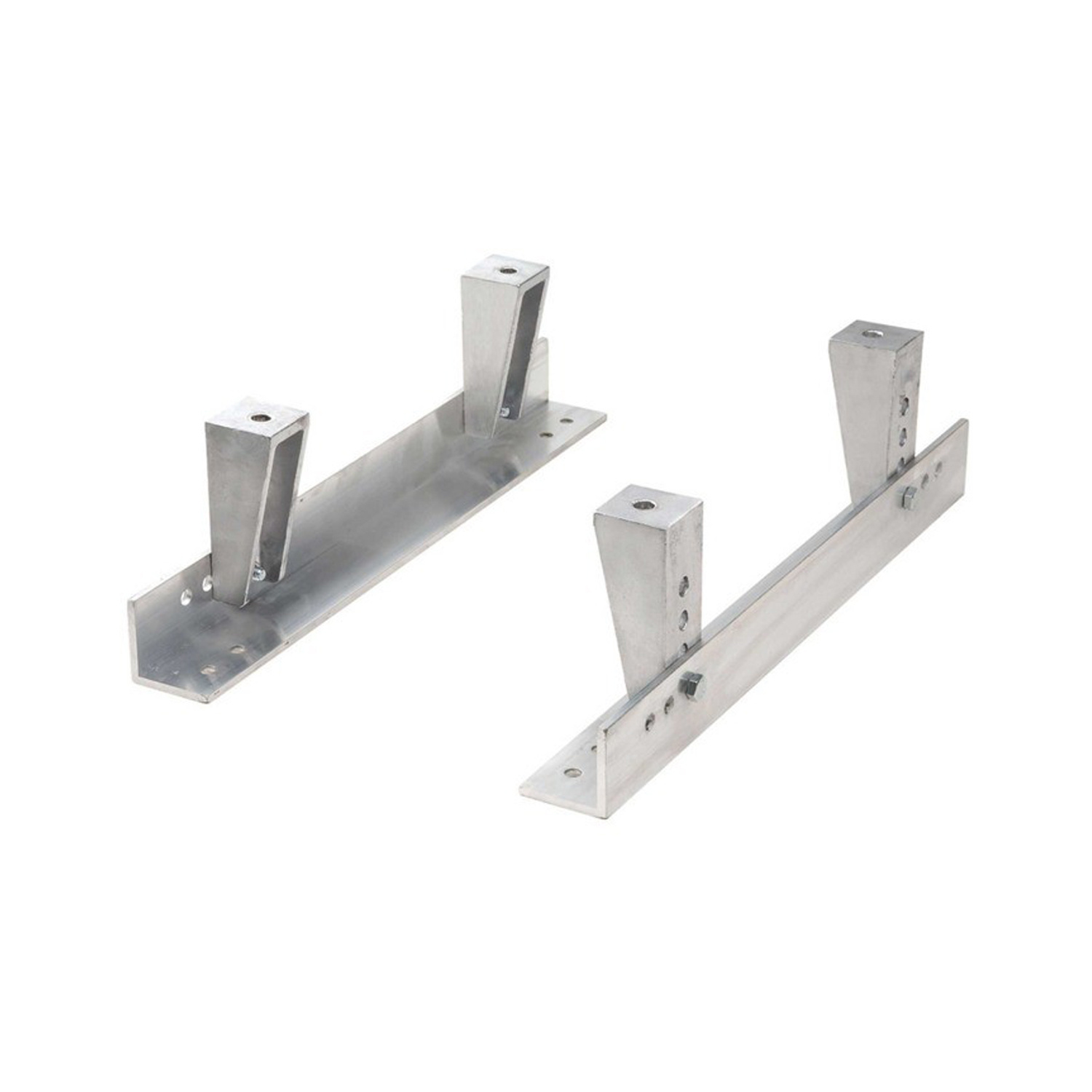

The set consists of two steel angle rails. Each rail has a flat mounting flange with several holes for fixing to the floor, plus two brackets that taper towards the top. The upper surface of each bracket carries a threaded hole for the seat bolts. The finish is bare metal.
The two rails differ in detail: one has a vertical cut-out in its brackets, while the other features a row of adjustment holes with bolts and nuts, allowing the bracket position to be fine-tuned. The frame is marked FIA and suits Peugeot 306 owners building a rally, race or track car.
